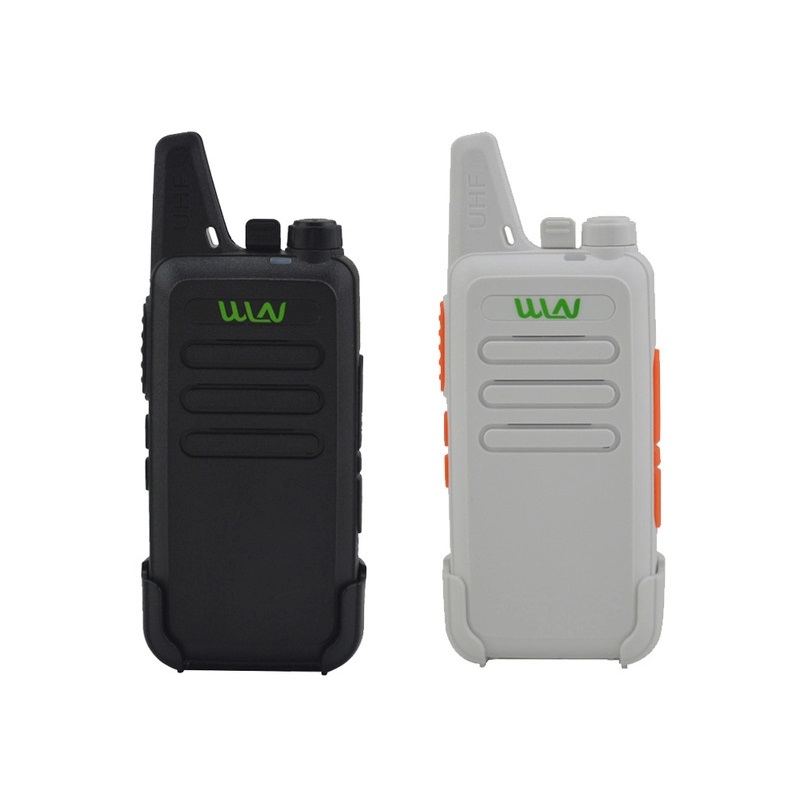

    16 Channels UHF Two Way Radio 6KM Handheld Walkie Talkies

    Ask Lasest Price
    Brand Name : OEM
    Model Number : C1
    Certification : CE,RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, , L/C
    Supply Ability : 10000Paris Per Month
    Delivery Time : 15-30 working days
    • Product Details
    • Company Profile

    16 Channels UHF Two Way Radio 6KM Handheld Walkie Talkies

    16 Channels UHF Two Way Radio 6KM Handheld Walkie Talkies


    Technical Specification:

    General

    Model NO.

    KD-C1 ham radio

    Frequency Range

    UHF 400-470MHz

    Channel Capacity

    16

    Channel Spacing

    25KHz

    Output power

    5W

    Operated Voltage

    DC 3.7V

    Battery

    1500MAh Li-ion

    Battery Life

    (5-5-90 duty cycle) About 8 hours

    Frequency Stability

    ±2.5ppm

    Operated Temperature

    -30°c-+60°c

    Antenna Impedance

    50Ω

    Dimensions (L*W*H) (with battery, without antenna)

    110*50*32 mm

    Weight (with battery/antenna)

    198g

    Communication Range

    about 6km

    Transmitter

    RF Power Output

    3W

    Modulation

    F3E

    Spurious Emission

    ≤65dB

    FM Noise

    ≤-45dB(W) ≤-40dB (N)

    Audio Distortion

    ≤5%

    Transmitting Current

    ≤1.3A

    Receiver

    Sensitivity (12dB SINAD)

    ≤0.20 uV

    Selectivity

    55dB/50dB

    Intermodulation

    ≥65dB

    Adjacent Channel Selectivity

    ≥60dB

    Spurious Response

    ≥60dB

    FM Noise

    45dB/40dB

    Audio Power Output

    1000mW

    Audio Distortion

    ≤5%

    Standby Current

    ≈15mA (with battery save on)


    FAQ

    Q1 : Can I get a price list or discount?

    A: pls contact us if you want to make order,prices base on the quantity&packing&specifications,so pls check all the details before make order.


    Q2: About the customized service.

    A: We have a product development department which always design new products for customers,if you want a new design and need help,pls contact us to check the details.Surely,for small order,we also accept customized service,such as product stickers,box design or others.


    Q3: After-sale service?
    A: 1 year warranty for most kinds of our products.However,we also help our customers solve the problem even if the warranty expired.


    Q4: Payment
    A: We support T/T,Western Union,Money Gram,Escrow,Paypal,etc


    Q5: Transportation
    A: Transported by DHL,UPS,EMS,Fedex,Air freight,Sea freight.it depend on customers' choices.
